Hole Mole, the faster safer way to fill core holes

The HoleMole™ Core Hole Filling System is an ingenious and highly effective method for filling core holes that will save considerable time while also eliminating potential safety hazards.
Read CE HOT 2020 PRODUCTS Article
HoleMole Is the Clever New Way to Fill Core Holes

With the HoleMole Core Hole Filling System, you can plug and fill a core hole from above without ever having to go below, climb a ladder, affix a board, operate a lift or use a power tool. And, you can fill a hole from start to finish in less than a minute.

The HoleMole 3-Step Process

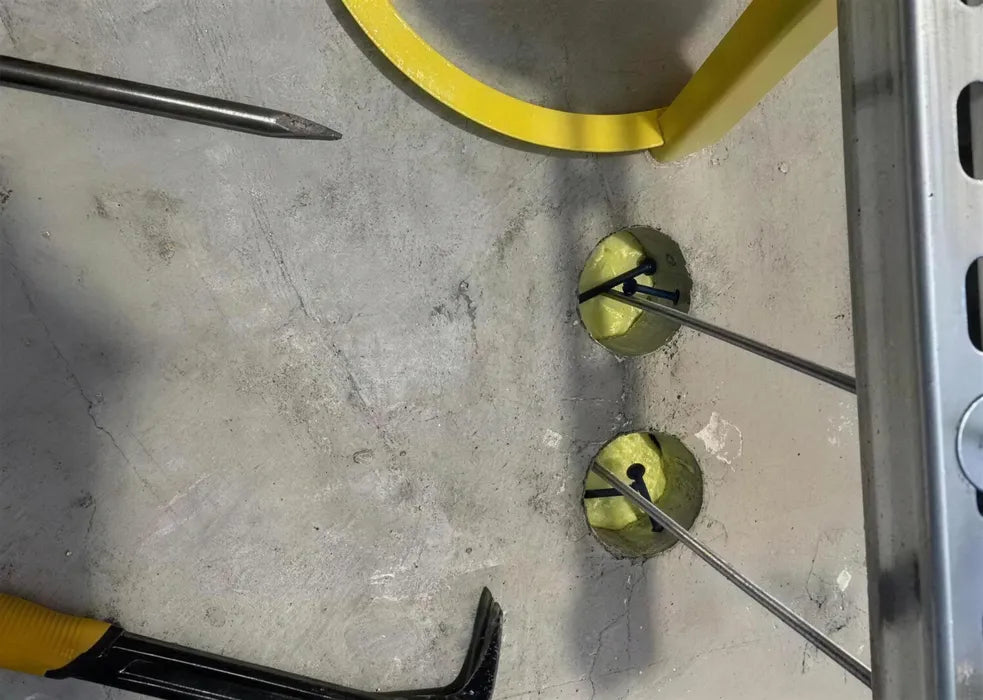

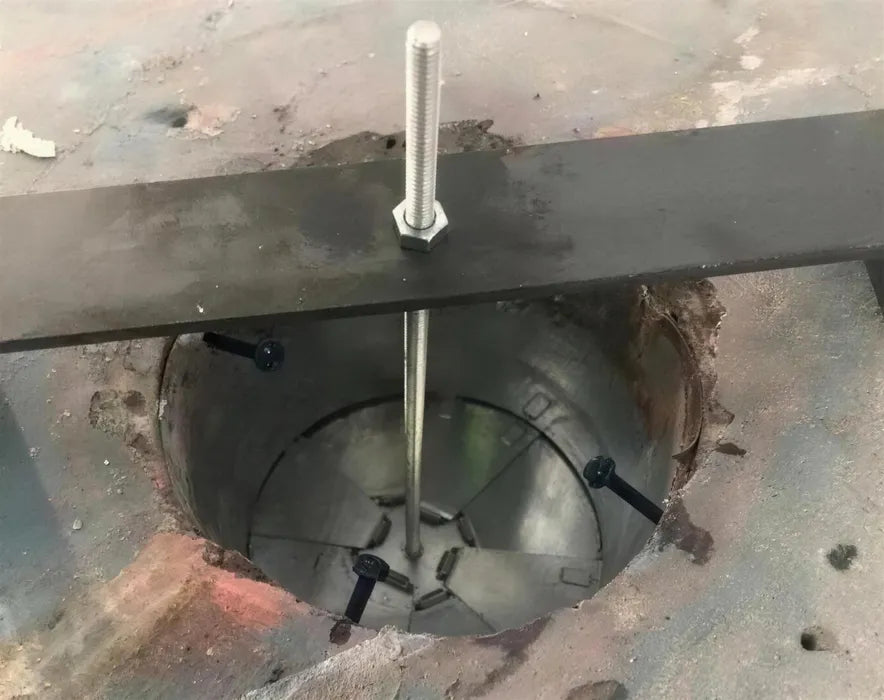

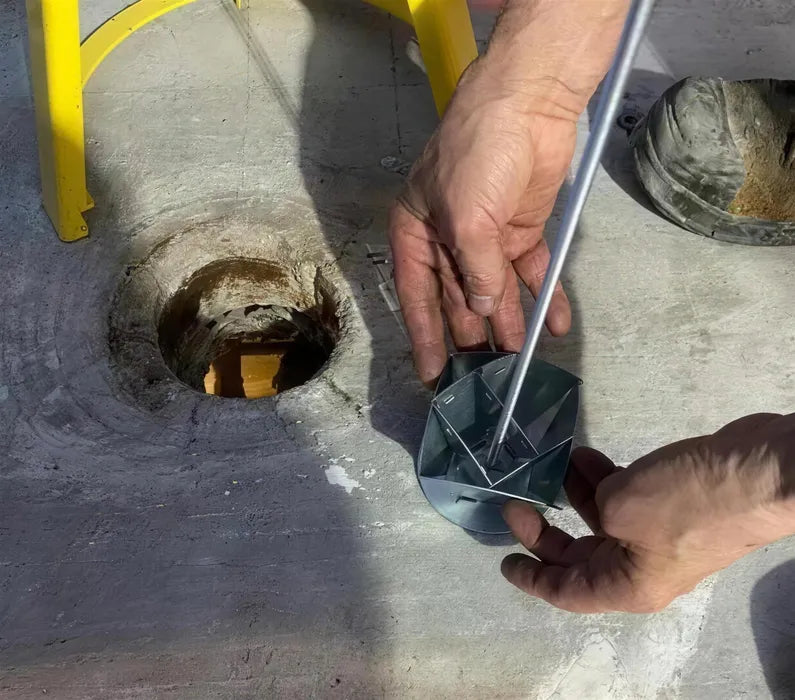

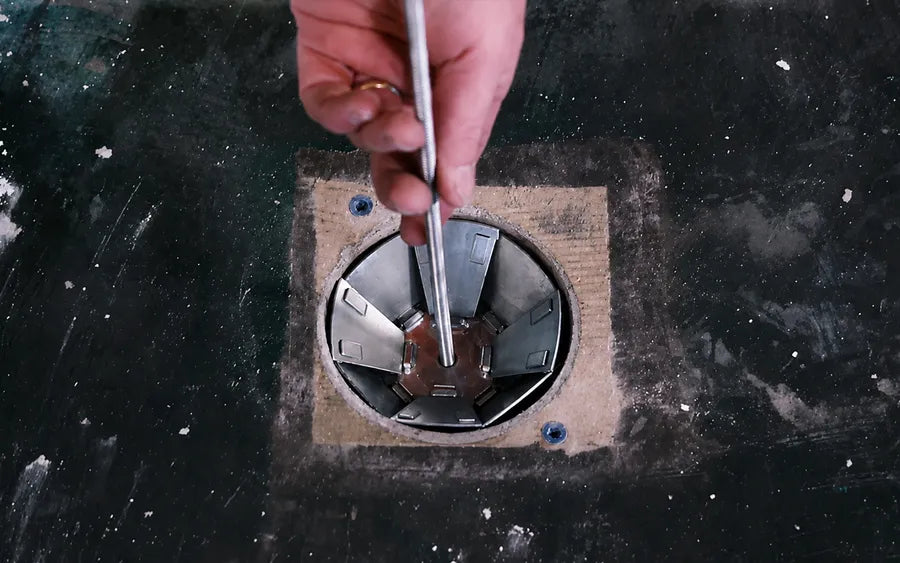

1. Lower Mole through the hole

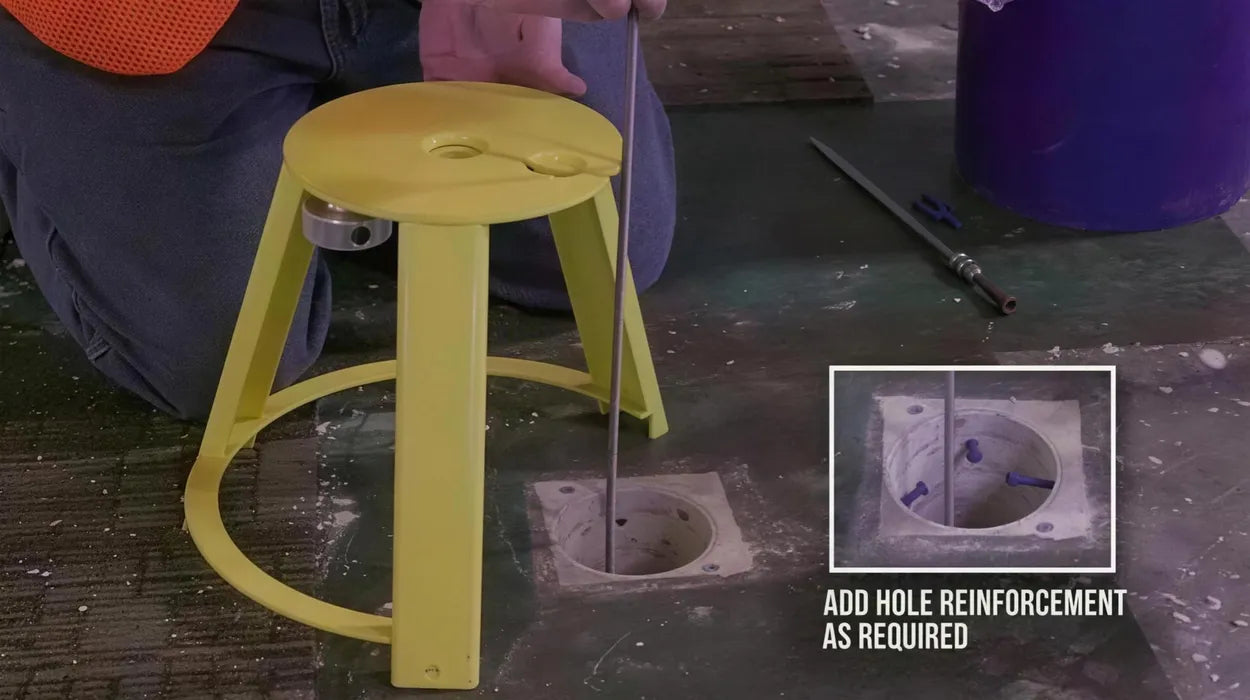

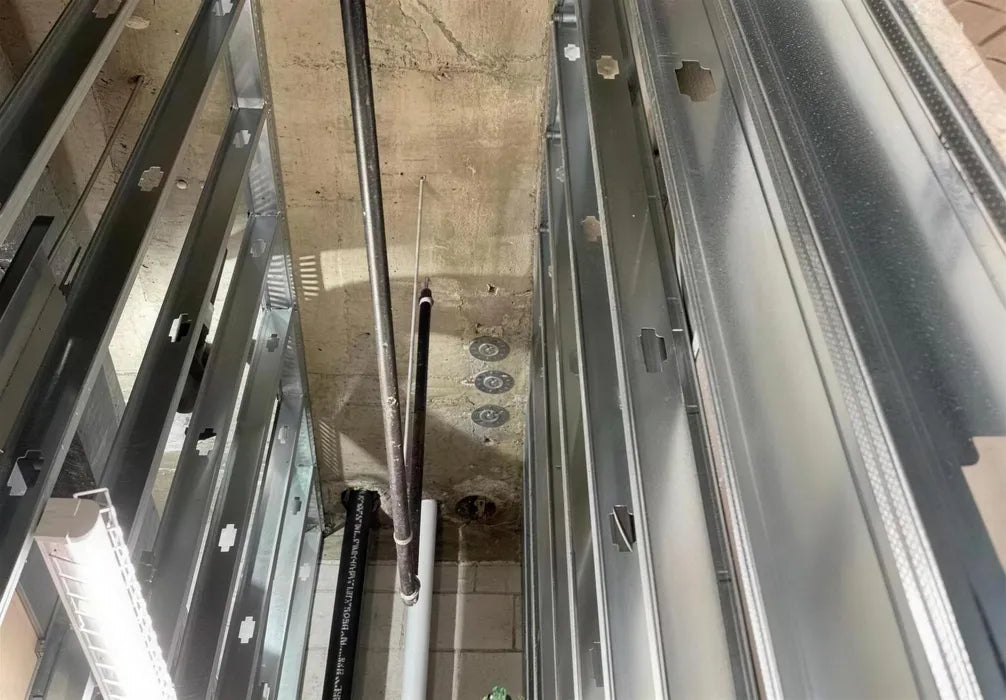

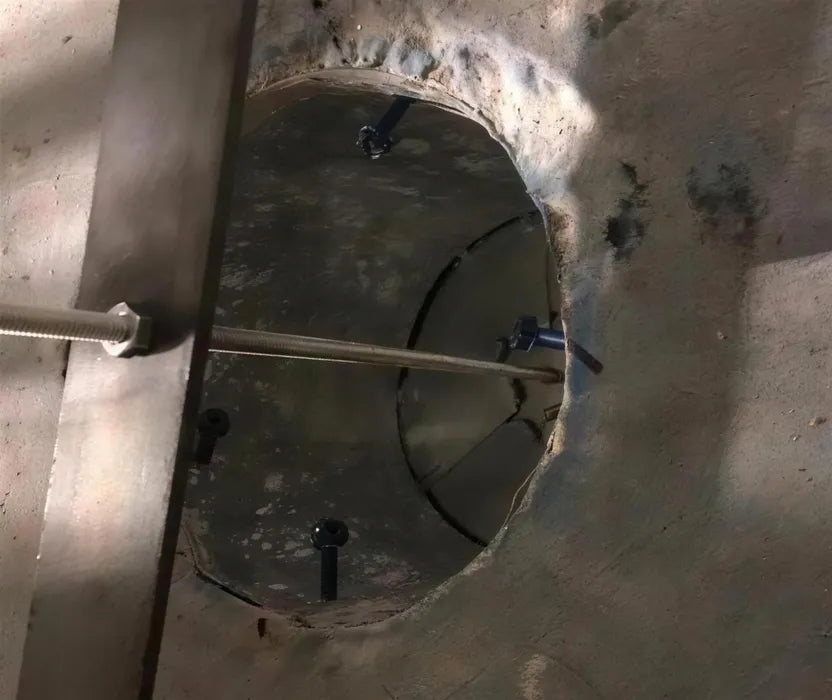

Connect threaded rod to Mole, lower through hole (it will collapse to fit) and pull back up so Mole plugs bottom of the hole. Prep hole per job site specification.

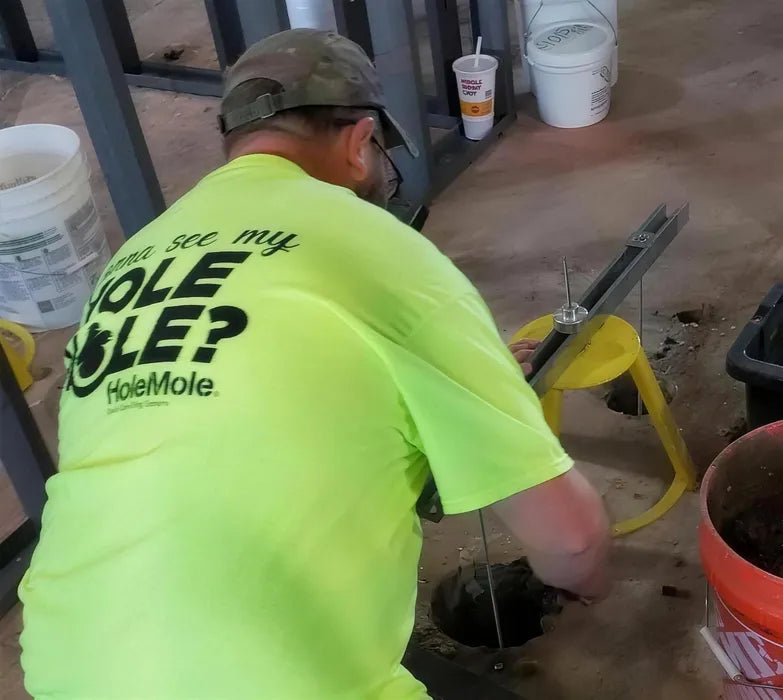

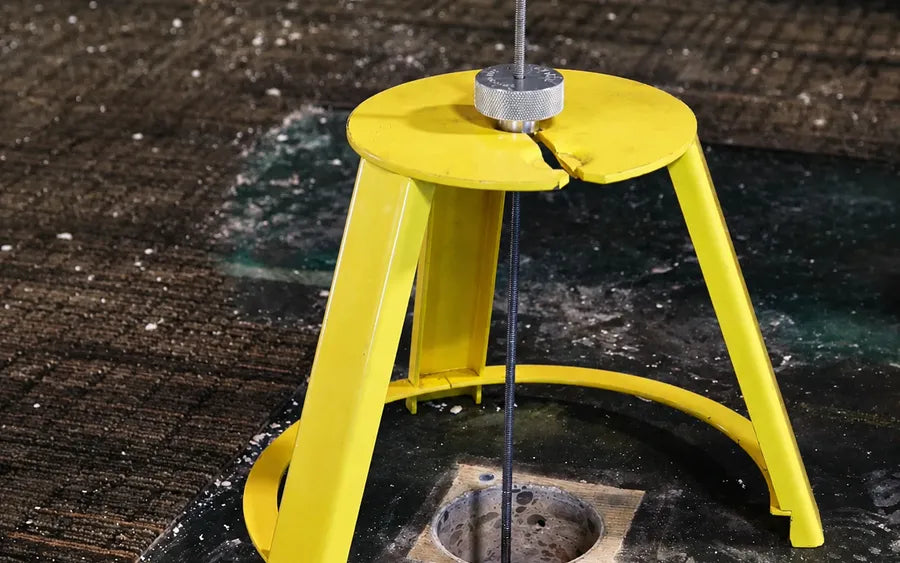

2. Connect to the Mole Stand

Slide Mole Stand over hole, guiding threaded rod through the slot until it is in the center of the stand. Connect threaded rod to stand using SpeedNut.

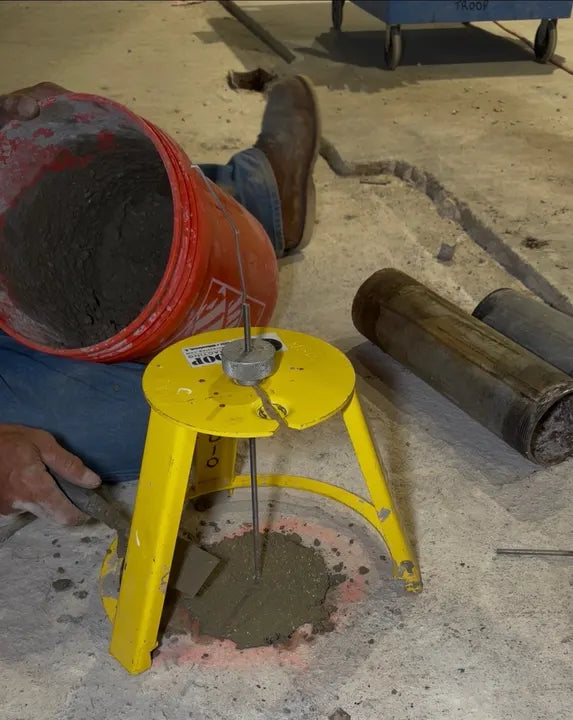

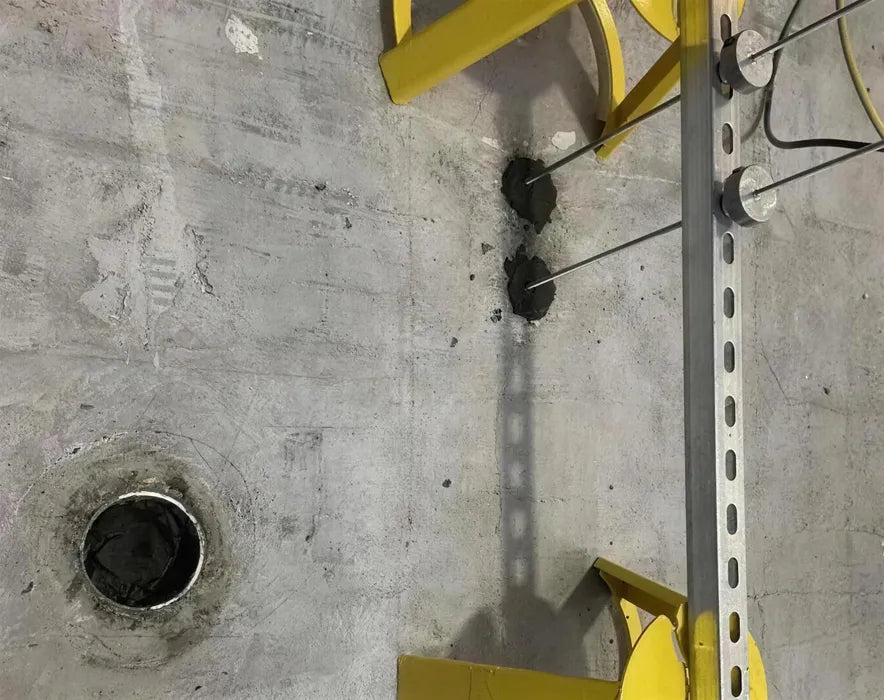

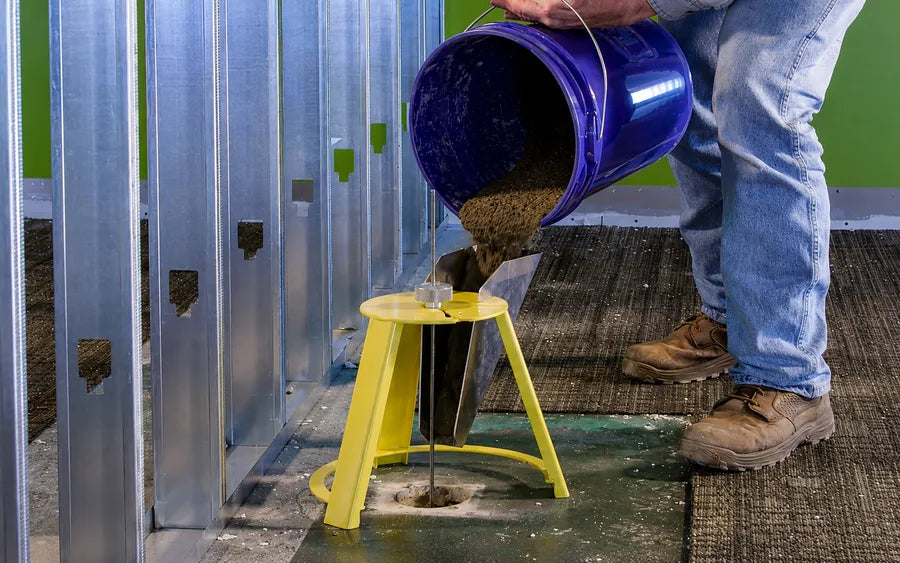

3. Fill the hole, break off rod

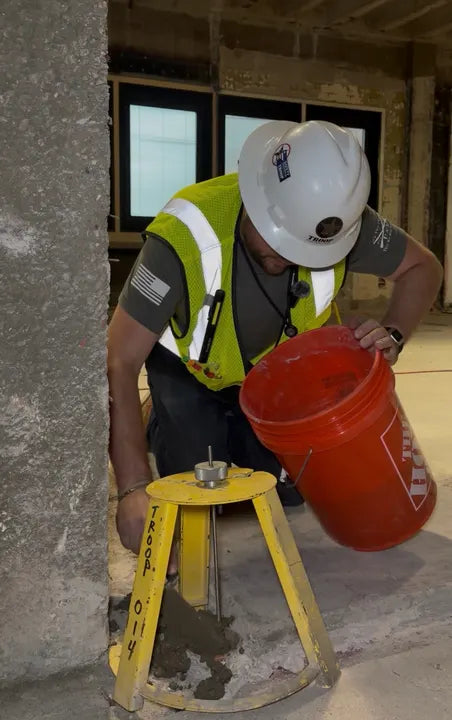

Connect Speed Chute to stand and pour hole filling product through chute and down hole. Smooth product flush with surface. Remove Mole Stand and break off rod once set.
“We finished up a hospital core hole job, and everything went great. The HoleMole system was great and expedited our schedule tremendously. We will definitely use these again on our future projects.” Dan Gonzales – United Concrete
“HoleMole worked faster than we thought it would and saved us a lot of time. In our case, we used a fast-setting repair mortar and were able to do multiple holes…approximately 55-60 holes in one day.” Ray Hogrefe – Gresser Co.
“The HoleMole worked great. The amount of time the product saved from not having to go below the deck to pin plates saved a lot of time and cost. HoleMole was simple to use and easy to transport from hole to hole.” Danny Haycock – McCarthy Building Companies
“We actually used all 108 Moles that we purchased and have to say they are a great product that saves time and money. We will definitely be using these again.” Bill Schuh – MAMAN CORP.
“Your product has saved us cost in both time and material. It is very easy to use…and we will definitely be ordering more.” Rudy Espindula – MISSION CONSTRUCTORS
“HoleMole products made our core repair process incredibly simple.” Brandon R. Crosby – GILBANE BUILDING COMPANY

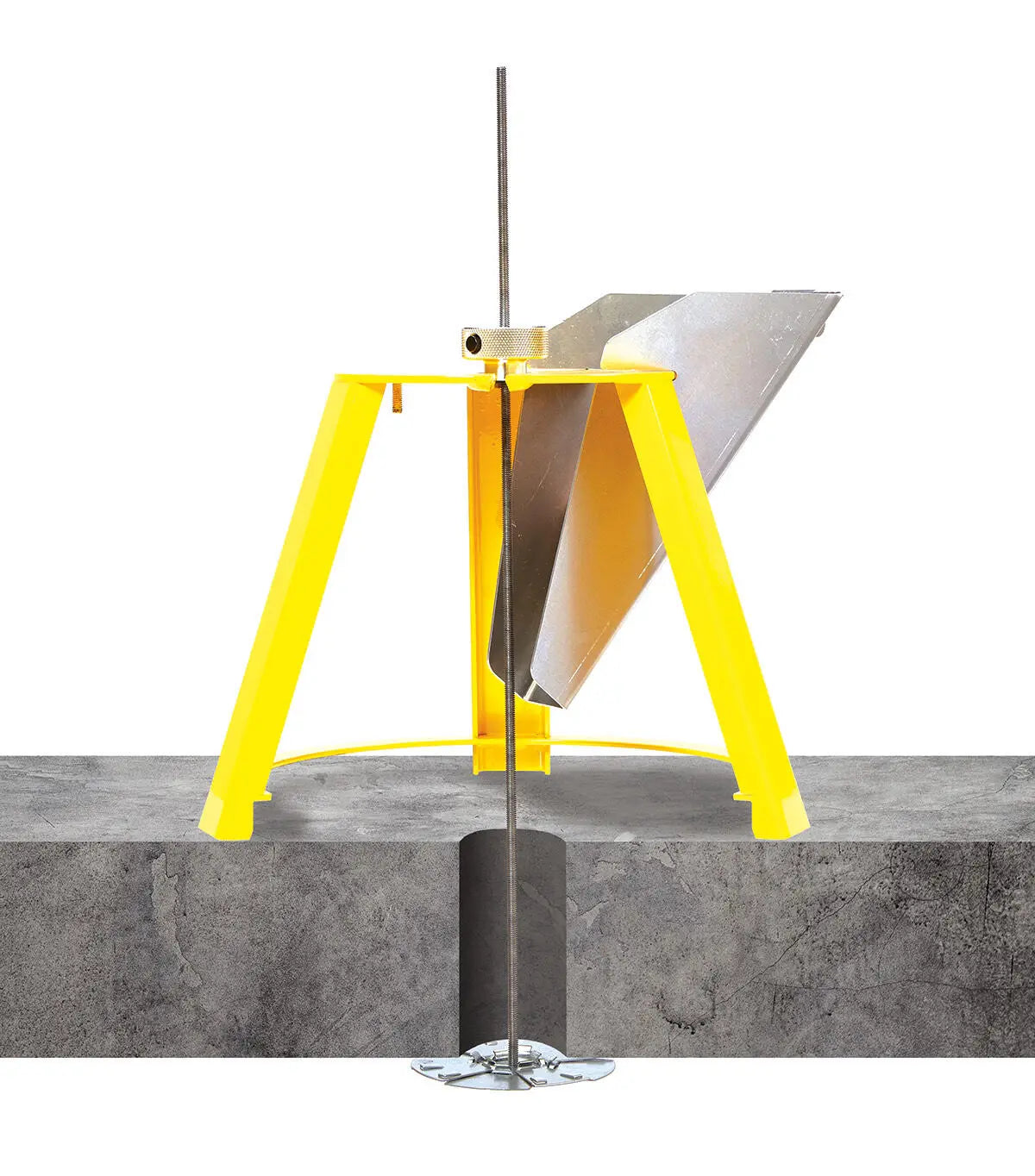

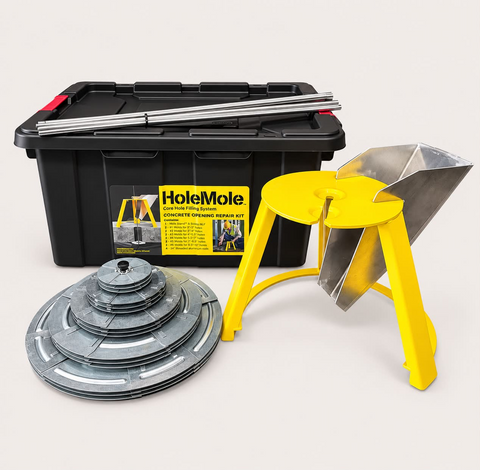

The HoleMole System

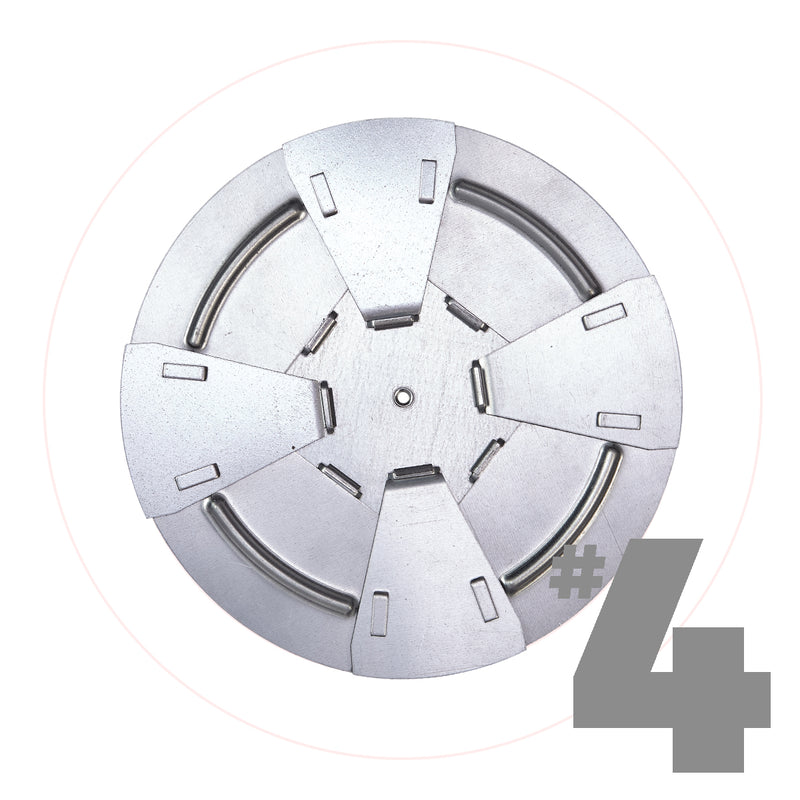

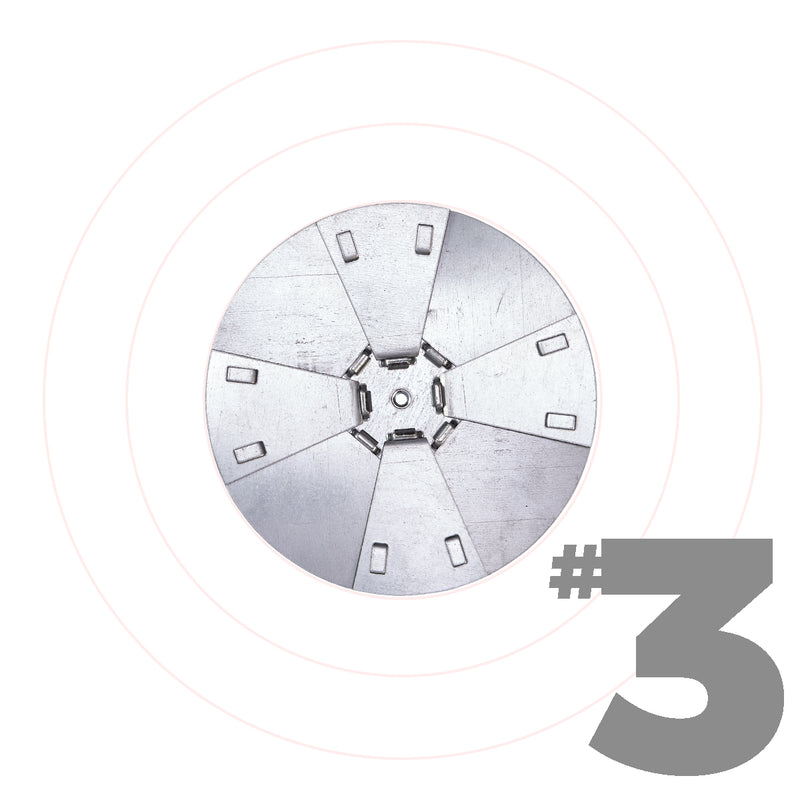

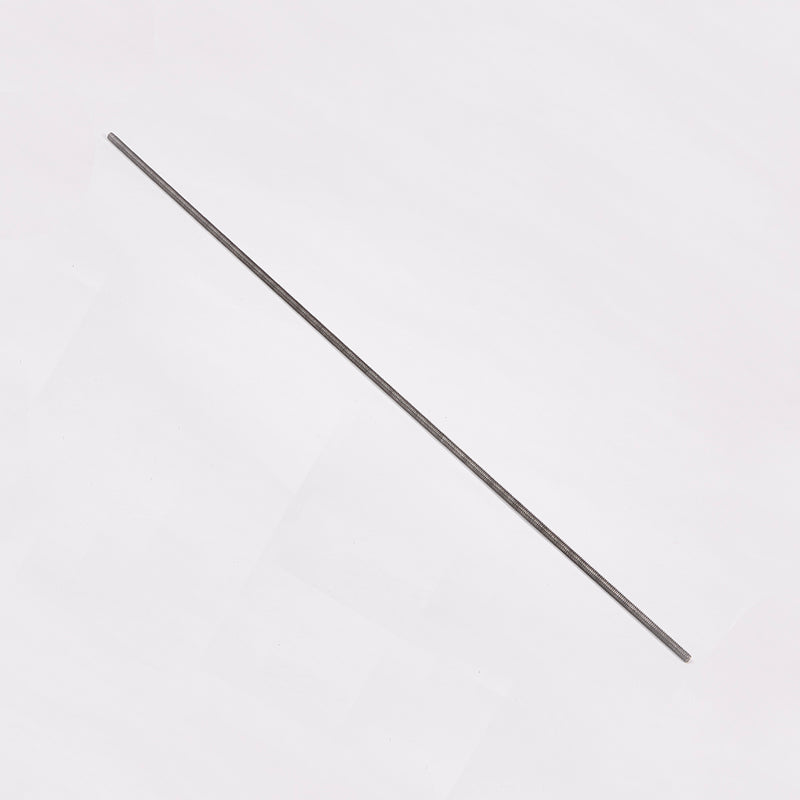

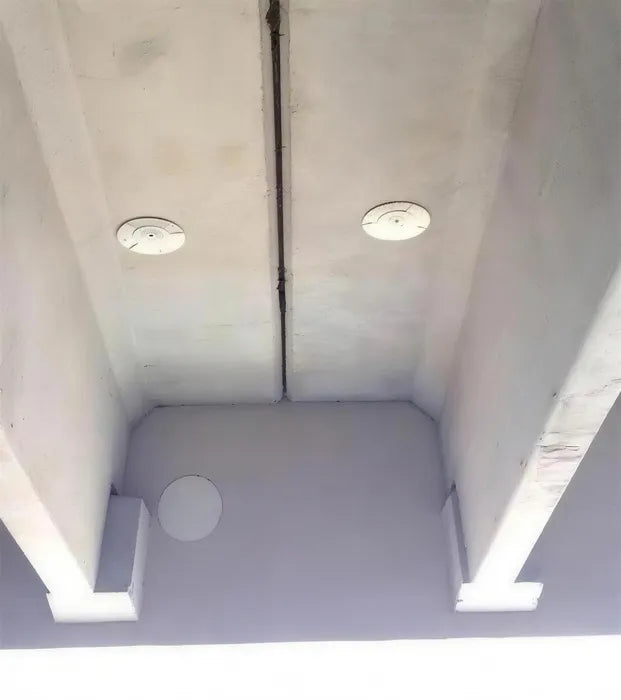

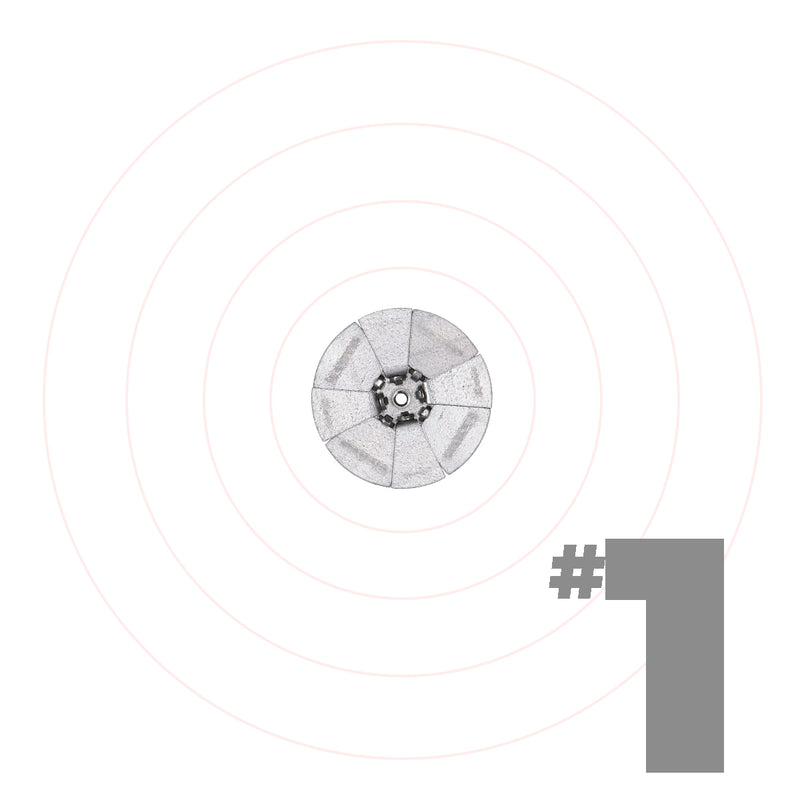

Mole expandable hole plugs – the key to the HoleMole system are these clever expandable hole plugs. Called Moles, they are made of 16-gauge galvanized steel and available in 5 sizes and they feature one-way collapsible flaps around the perimeter. You attach a threaded aluminum rod to the center of the Mole and when you lower the Mole down through a core hole the flaps collapse until the Mole emerges through the bottom of the hole. Pull the Mole back up against the bottom of the hole and the flaps stop in position, plugging the hole and preparing it for filling.

  • Expansion flaps are removable so you can modify the Mole to work around plumbing, HVAC supports and the like. Larger Mole sizes (#4 and #5) feature stability ribs for added strength
  • Bendable tabs on sizes #2—#5 provide proper resting position and even faster installation for wall applications
  • Larger Mole sizes (4 and 5) feature stability ribs for added strength

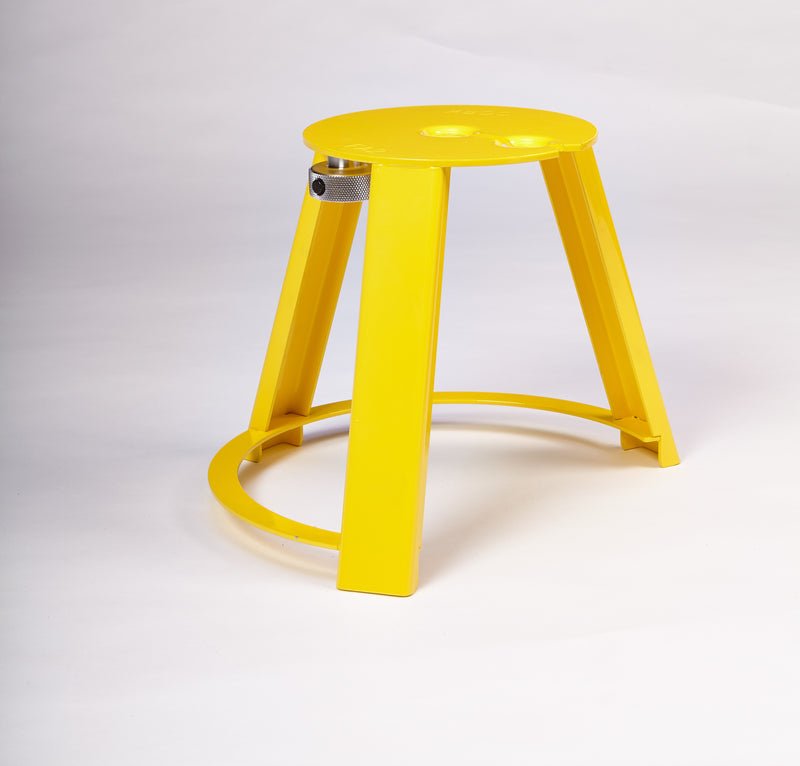

Mole Stand

Mole Stand

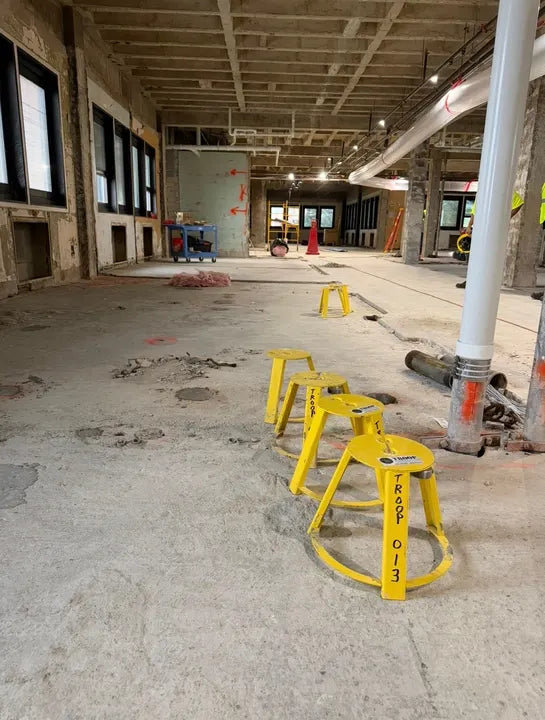

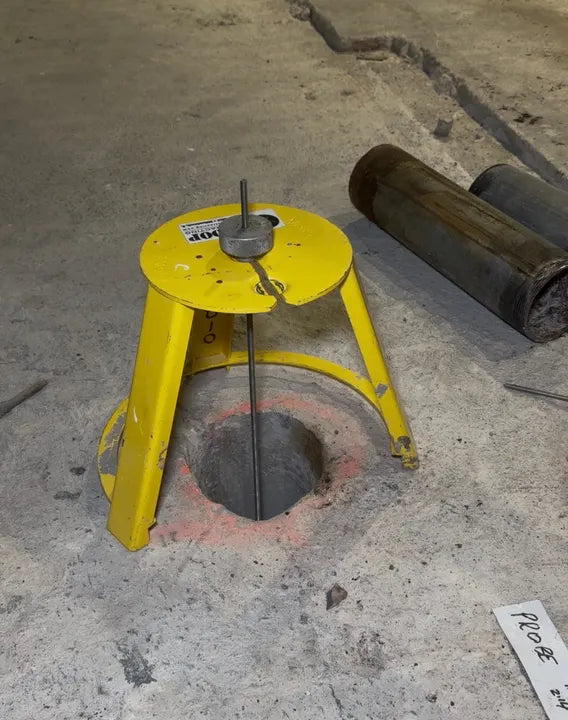

Once your Mole is in position, you hold it in place by connecting the threaded rod to the heavy-duty Mole Stand, a stout, three-legged steel apparatus that you position directly above the core hole.

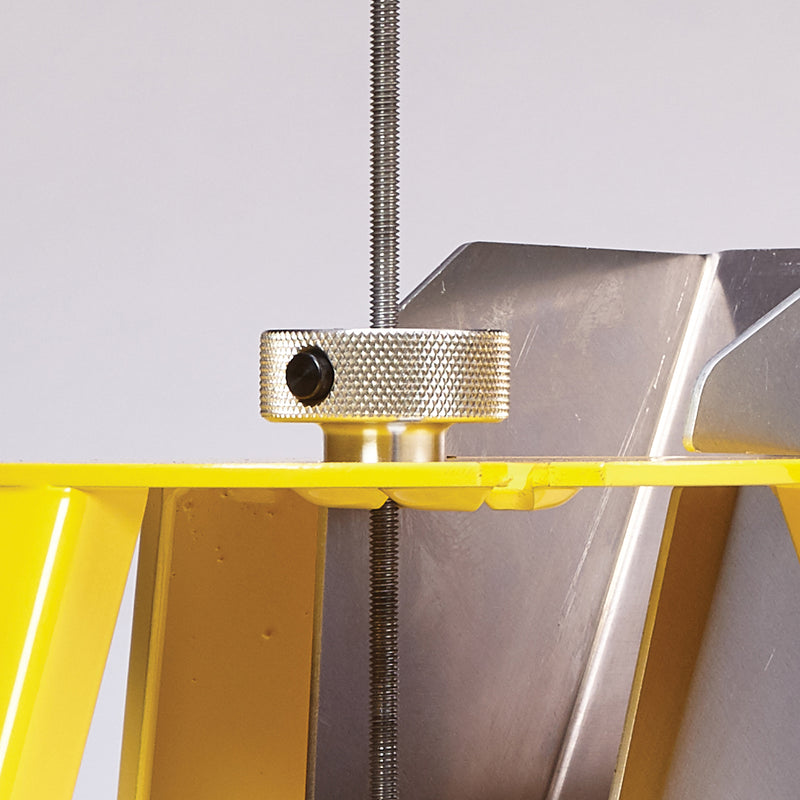

SpeedNut

SpeedNut
A revolutionary and patented oversized nut that attaches to the opposite end of the threaded rod from the Mole and connects the rod to the Mole Stand to hold the Mole in ready position. The SpeedNut is unique in that you do not have to turn it. You simply depress a button plunger which disengages it from the threads so you can slide it into position. Then, simply re-engage and turn to final tighten. Using a SpeedNut is a big-time saver.

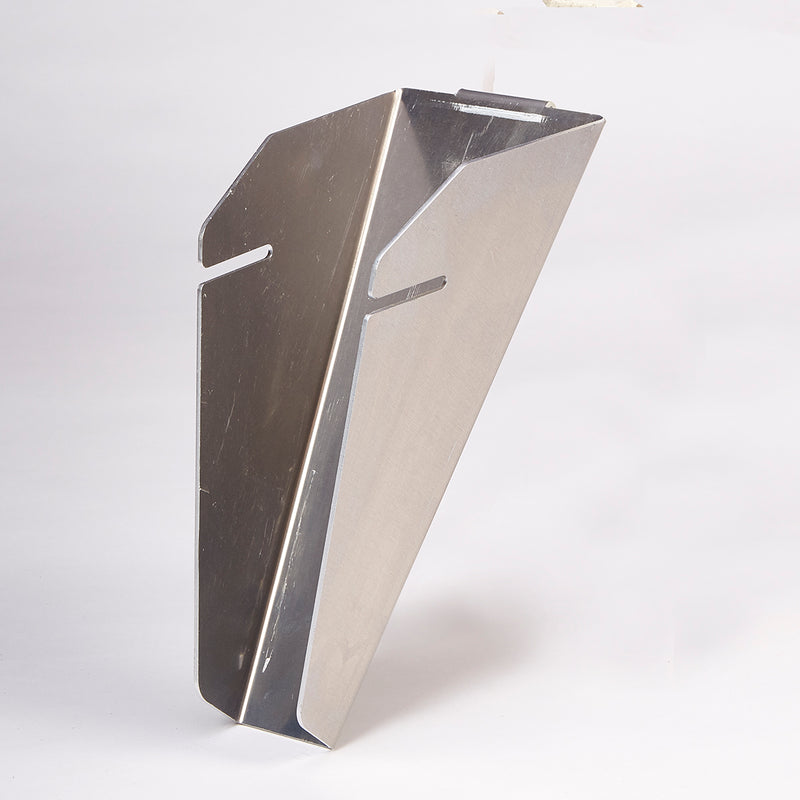

Speed Chute

Speed Chute
Once you have the Mole in place the core hole is prepared for filling. Speed Chute is a formed 10-gauge aluminum device into which you pour your hole-filling product. Speed Chute securely slides into slots on the Mole Stand at a slight angle and guides product to the center of the hole as you pour making filling the hole fast, clean and easy.

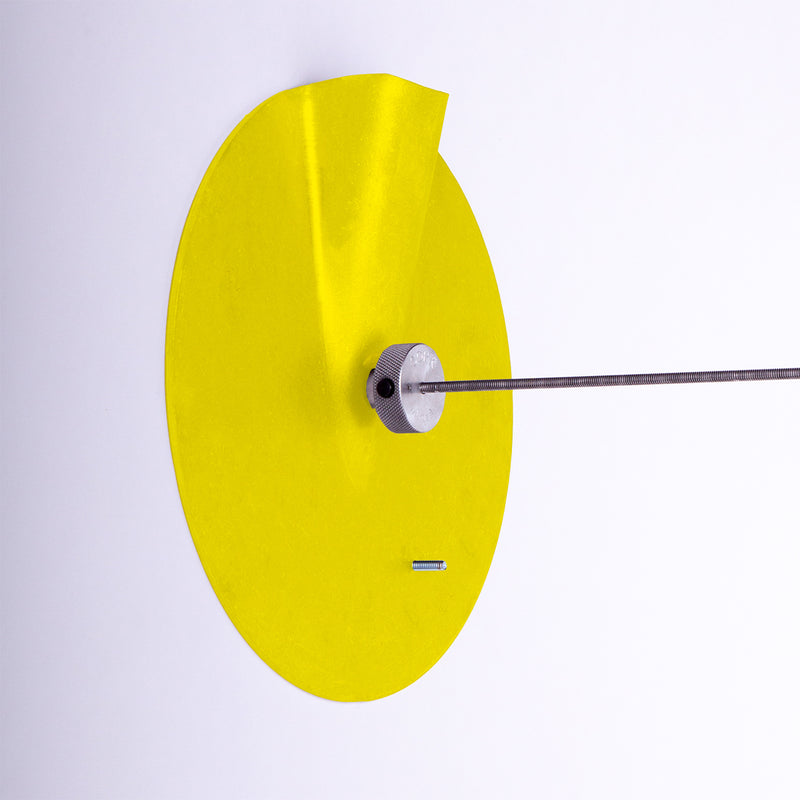

Wall Applicator

Wall Applicator

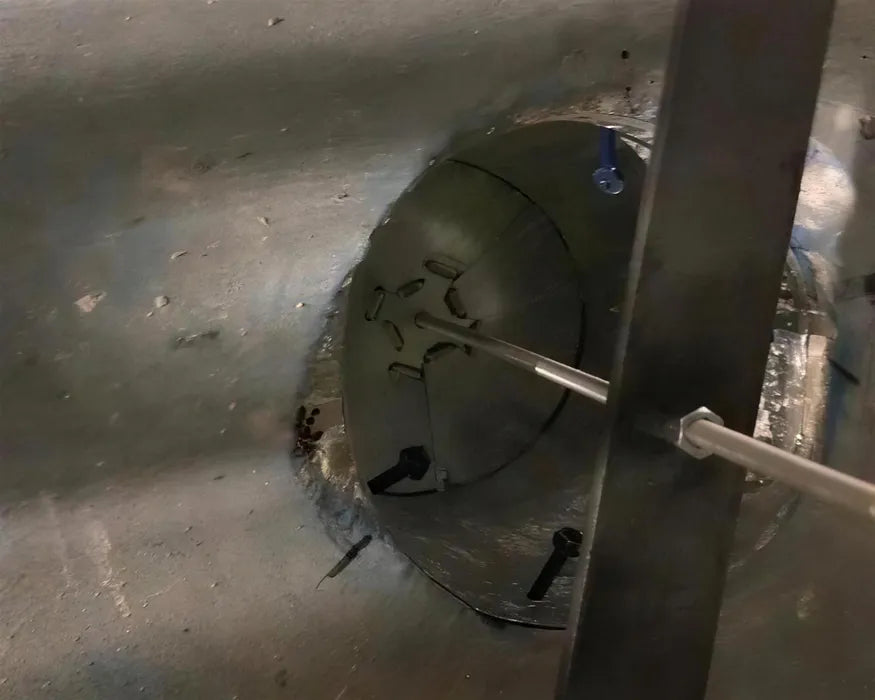

Wall Applicator is made to fill core holes through vertical surfaces. The Mole is inserted horizontally through the hole, then the connecting rod goes through the Wall Applicator, which is then fastened to the wall. The Mole and rod are held in place with the SpeedNut and the hole filled through the chute at the top.
  • #1. 2″—3″

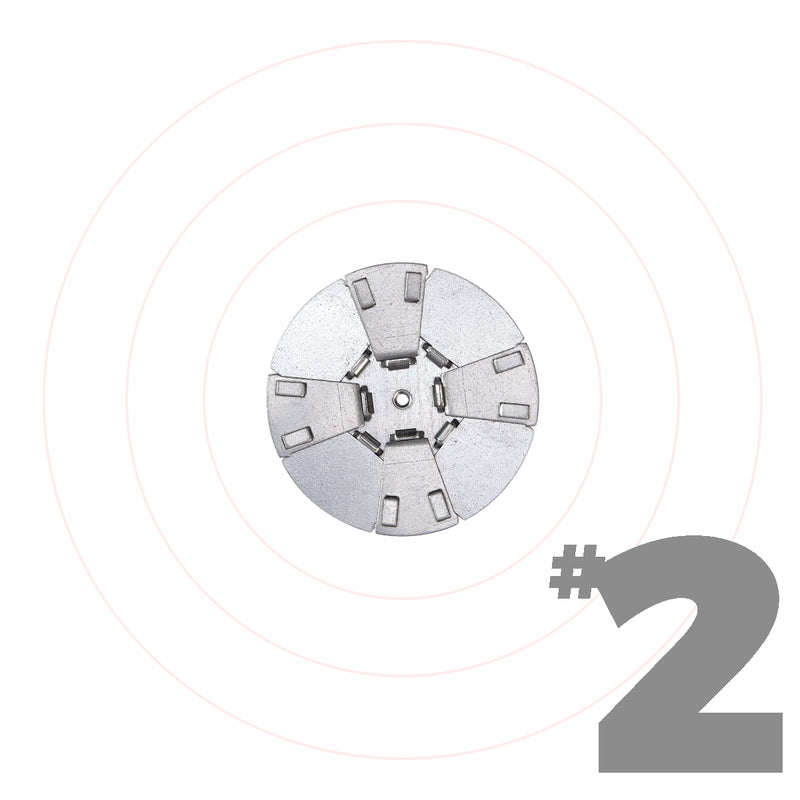

  • #2. 3″—4.5″

  • #3. 4.5″—6.75″

  • #4. 6.75″—9.5″

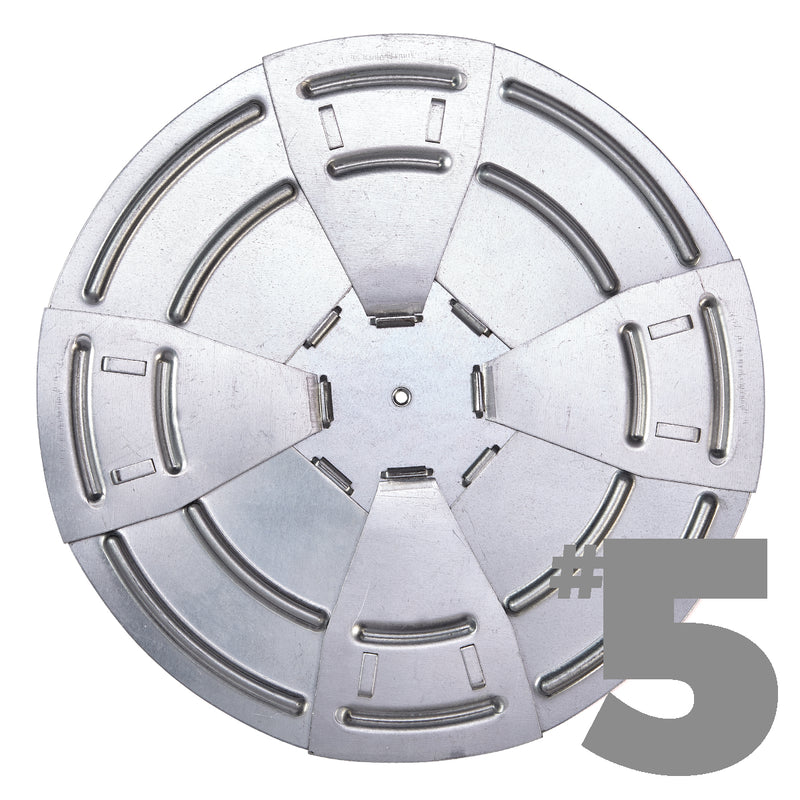

  • #5. 9.5″—12.5″

Core hole fill calculator

Total Bags Required

* Each bag denotes a 50lb bag of Non-Shrink Grout
- 1 - 50lb. Bag = 0.43 Cubic Feet

The problem with the traditional way of filling core holes

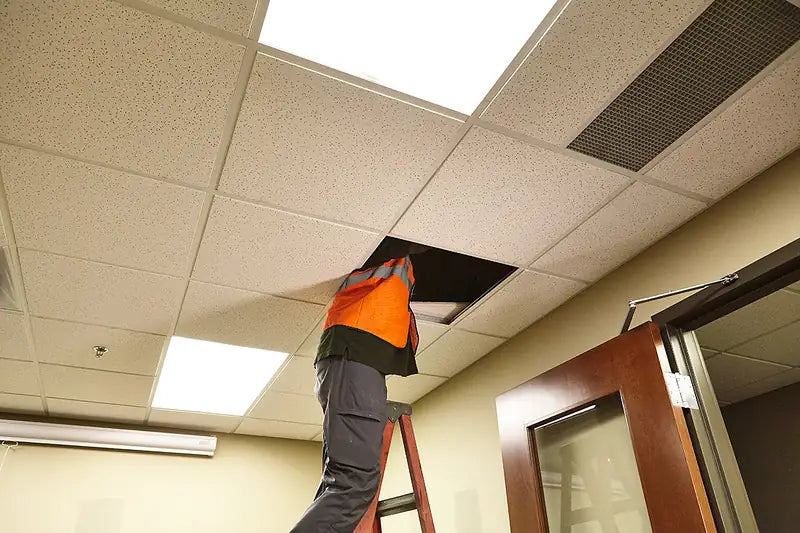

The traditional method for filling core holes calls for one to go to the floor below to install a plywood board to the underside of the hole as a plug to prepare for filling. This can take a fair amount of time and involve climbing ladders, using power lifts and using power tools, all possible safety issues, as well as disrupting whatever might be happening on that floor.
